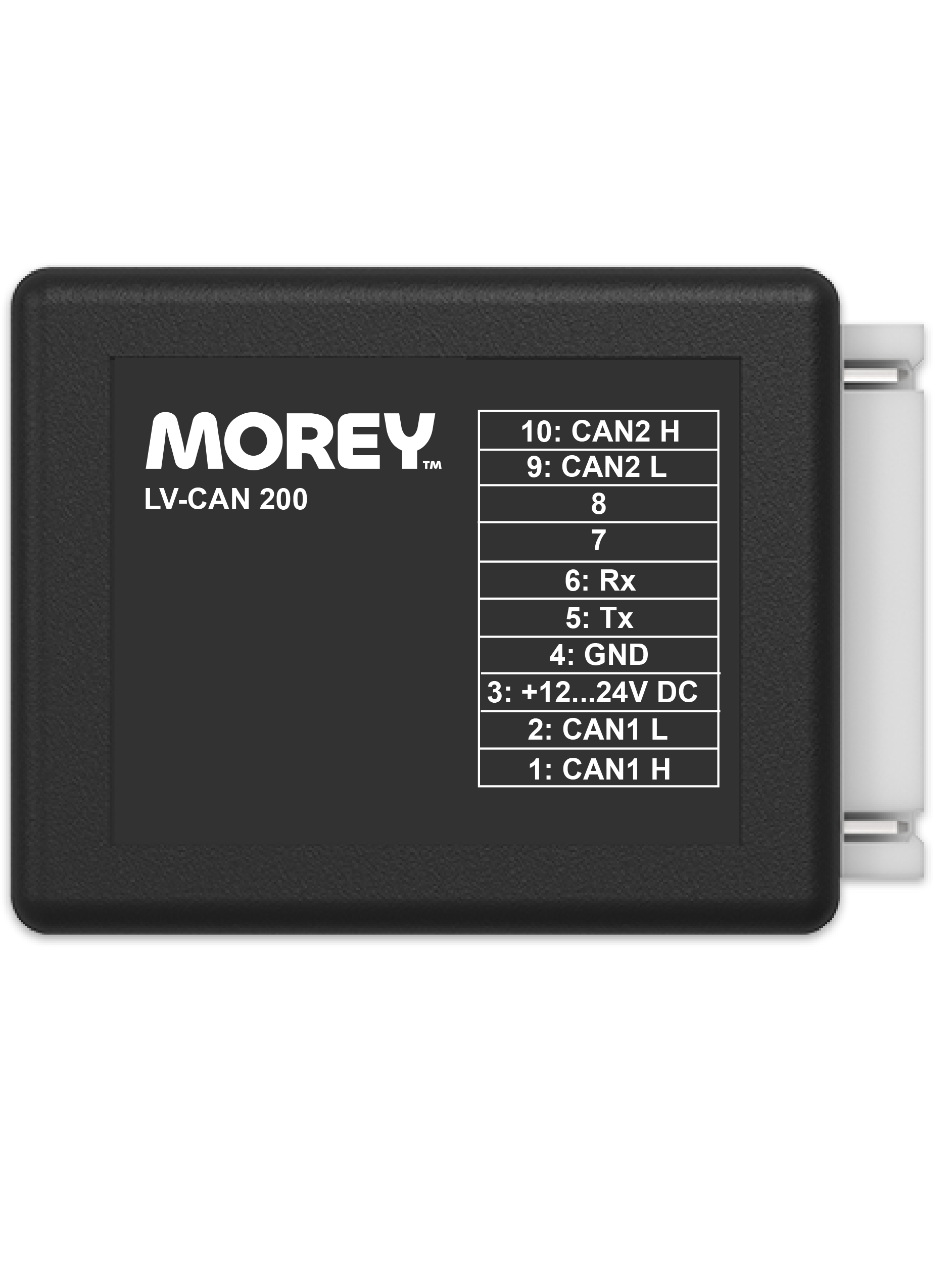

LV-CAN200

The LV-CAN200 is designed to quickly and reliably acquire CAN data. After installation, a host of basic parameters such as mileage, fuel level, fuel consumption, RPM, coolant temperature and more can all be collected from a vehicle’s on-board computer— helping to identify areas of improvement in the vehicle operation, drive down overhead and minimize environmental impact.
Request Quote
Schedule Demo
Morey-Icon-Configure-RGB

Seamless Integration

Supported by MCX201, MCX2M1, MCX301, MCX3M1 Telematics Devices.

Morey-Icon-Fleet Management-RGB-v1

1500+ Vehicles

Acquire CAN data from over 1500 vehicles.

Morey-Icon-Webpage-RGB-v1

Monitor CAN Data

Monitor CAN data from any kind of transport.

Morey-Icon-Connected Car-RGB-v1

10+ Supported Features

Fuel consumption, vehicle mileage, door status, vehicle speed, seat belt & more!

Medium Duty vehicle fleet of sprinter vans

Light Duty CAN Adapter

More than 1500 different models of light vehicles, vans, trucks, and buses are currently supported—and the number is constantly growing.

Morey-Icon-Light Duty-RGB-v2

Light
Vehicles

Morey-Icon-Heavy Duty-RGB-v2

Trucks

Morey-Icon-Webpage-RGB-v2

Fleet
Management

Morey-Icon-Bus-RGB-v2

Busses

Comprehensive, Industry-specific solutions

Smarter connection for your entire enterprise

Smarter connection for your entire enterprise

OTR Trucking

Meet tomorrow’s transportation & logistics challenges today with powerful & flexible devices that integrate seamlessly with your backend.

Learn More
Distribution center

CONSTRUCTION

Leverage sensors, trackers & telematics to gain complete, real-time visibility of your assets and jobsites.

Learn More
GC looking at building plans on a construction site

Fleet Management

Move beyond dot on a map tracking to unlock new levels of fleet efficiency and driver safety.

Learn More
Delivery guy unloading deliveries

Seamless Intergration With MCX

Download Datasheet

LV-CAN200 Specifications

Technical Data

SUPPORTED BY:
MCX201, MCX2M1, MCX301, MCX3M1

INPUT VOLTAGE RANGE
9 – 63.5 V DC

POWER CONSUMPTION
At 12V < 0.4 mA (Standby)
At 12V < 10.6 mA (Working)

OPERATING TEMPERATURE RANGE
-40°C to +85°C

OPERATING HUMIDITY
Max 85% non-condensing

LED INDICATION
1 status LED

SUPPORTED VEHICLE FEATURES*
Total fuel consumption
Fuel level (dashboard)
Vehicle mileage
Door status
Engine speed (RPM)
Engine temperature
Vehicle speed
Accelerator pedal position
CNG level
Total CNG consumption
Engine is working on CNG status

*Number of parameters depends on vehicle model, year & equipment

DIMENSIONS
41 x 33 x 14.5 mm (1.6 x 1.3 x 0.6”)

WEIGHT
55 g (1.9 oz)
