Features

•

  BUILT FOR ANY SOFTWARE STACK

  Run third-party platforms, your own applications, or future software without reworking hardware. A Linux-based BSP with full system access gives your team freedom today—and flexibility for what’s next.

•

  LIFECYCLE-READY DEPLOYMENT

  Designed to ship from the factory and stay with the machine for life. No aftermarket installs. No field retrofits. No added complexity. Standardize your connected strategy across every platform and generation.

•

  EDGE-COMPUTE POWER

  A dual-core processor, Docker support, and A/B-partitioned OTA updates enable real-time analytics, predictive maintenance, and remote debugging—right at the edge, where uptime and performance matter most.

•

  ULTRA-RUGGED BUILD

  IP69K-rated, shock-tested to SAE J1455, and qualified from –40°C to +85°C, C1-Core is built for machines that work in the harshest conditions and demand electronics that won’t quit.

•

  CONNECTIVITY + SENSOR FUSION

  Dual CAN (J1939/CAN-FD), Automotive Ethernet, RS-485, up to 6 digital I/O, up to 3 analog inputs, GNSS, BLE, Wi-Fi, and LTE Cat 1—everything needed to capture, correlate, and act on machine and sensor data in a single device.

• SOFTWARE & PLATFORM SUPPORT

  • →

    OS
    Morey Linux w/ systemd
    (Yocto 5.2 / Kernel 6.12)
  • →

    System Services
    Secure Updater, Modem Manager, Power Manager, Thermal Manager, MFG Data Manager
  • →

    Application Services
    POST, Log Preserver, Fault & Performance Monitor, Time sync, I/O & IMU Abstraction
  • →

    Protocols
    sockerCAN, J1939, J1979, Modbus, MQTT/TLS
  • →

    Security
    TLS, Secure Boot (U-Boot), Encrypted OTA, EdgeLock Enclave
  • →

    Developer Tooling
    SSH, SDK, CLI tools, container support
  • →

    Update Support
    OTA, A/B rollback, signed images

• COMPUTE & MEMORY

  • →

    Processor
    Dual-core Arm Cortex-A55 @ 1.7GHz
  • →

    Memory
    1 GB LPDDR4
  • →

    Storage
    16 GB eMMC
    (expandable to 512 GB)
  • →

    Architecture
    64-bit, Yocto-based custom Linux OS

• CERTIFICATIONS & COMPLIANCE

  • →

    Carrier Certifications
    4G LTE, PTCRB
  • →

    Regulatory
    FCC / IC, CE, RoHS
  • →

    Transport
    UN 38.3 (battery)
    SAE J1455 shock/vibration
  • →

    Ingress Protection
    IP69K certified


• CONNECTIVITY & POSITIONING

  • →

    Cellular
    LTE Cat 1
    (Bands: 2, 4, 5, 12, 13, 66)
  • →

    Wifi
    802.11b/g/n (2.4GHz)
  • →

    Bluetooth
    BLE 5.2
  • →

    GNSS
    GPS, GLONASS, Galileo, BeiDou, QZSS
  • →

    GNSS Accuracy
    <2 CEP50
  • →

    GNSS Assisted Support
    Yes
  • →

    Cold Start
    <30s
  • →

    Hot Start
    <2s
  • →

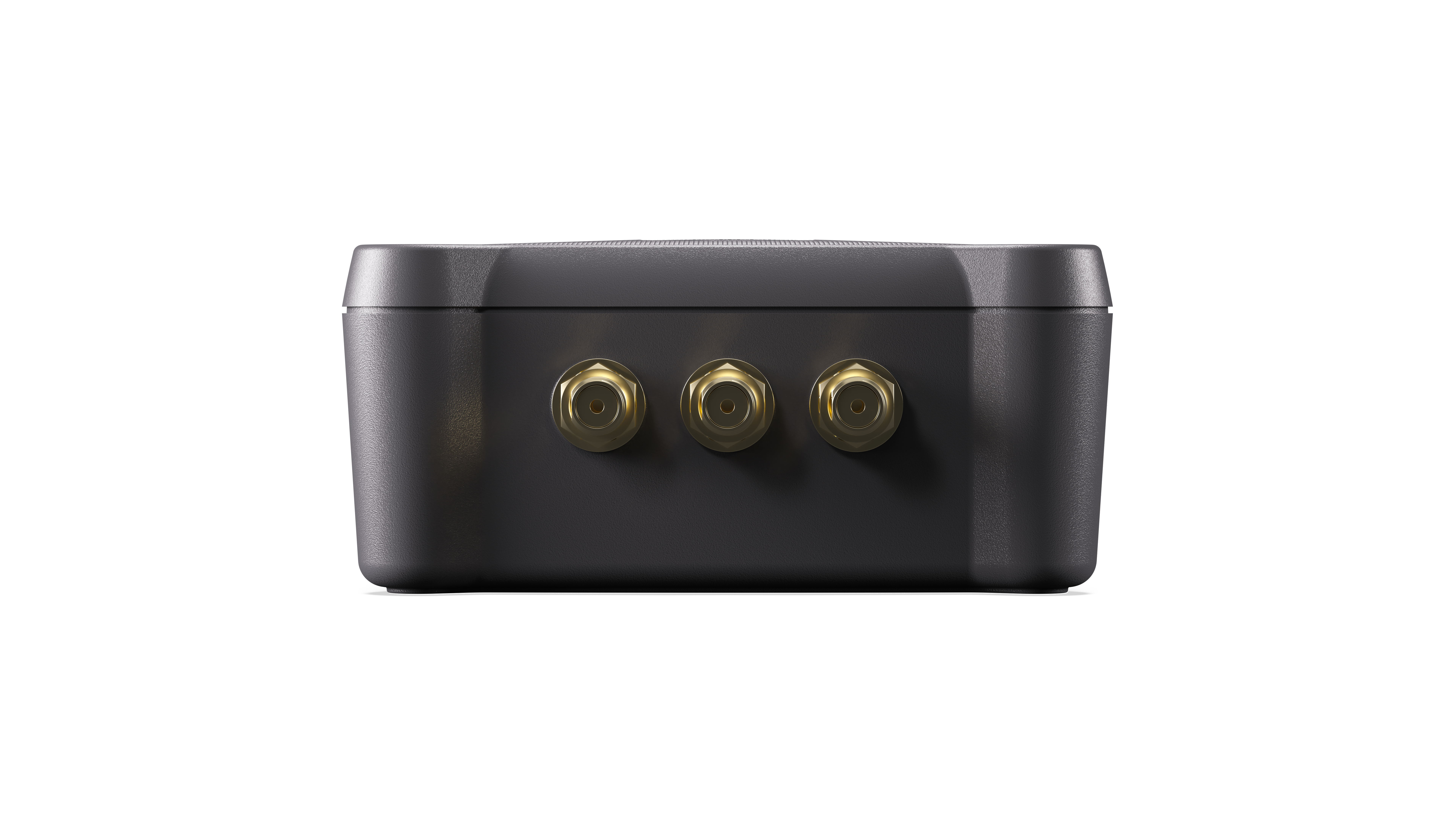

    Antennas
    Internal and external variants
  • →

    SIM
    Nano SIM

• POWER & ENVIRONMENTAL

  • →

    Input Voltage
    9–60Vdc
    (12V, 24V, 48V systems)
  • →

    Transient Protection
    ISO 7637 compliant
  • →

    Power Consumption
    <1mA (sleep), 110mA (active)
  • →

    Internal Battery
    2500 mAh
  • →

    Operating Temperature
    -40°C to +85°C*
  • →

    Enclosure
    IP69K rated (dust, pressure wash, extreme weather)
  • →

    Shock & Vibration
    SAE J1455 compliant

• I/O & INTERFACES

  • →

    CAN FD
    2x isolated channels (J1939 supported)
  • →

    Automotive Ethernet
    1x 100Base-T1, RS485, 1x (Modbus, J1708)
  • →

    Digital Inputs/Outputs
    Up to 6 in / 6 out (configurable)
  • →

    Analog Inputs
    Up to 3
  • →

    IMU
    6-axis (accelerometer and gyroscope)
  • →

    Other Interfaces
    Ignition Sense, GPIO, optional USB-C debug and SD Card
  • →

    LEDs
    1 tri-colored (programmable diagnostics and status indicators)

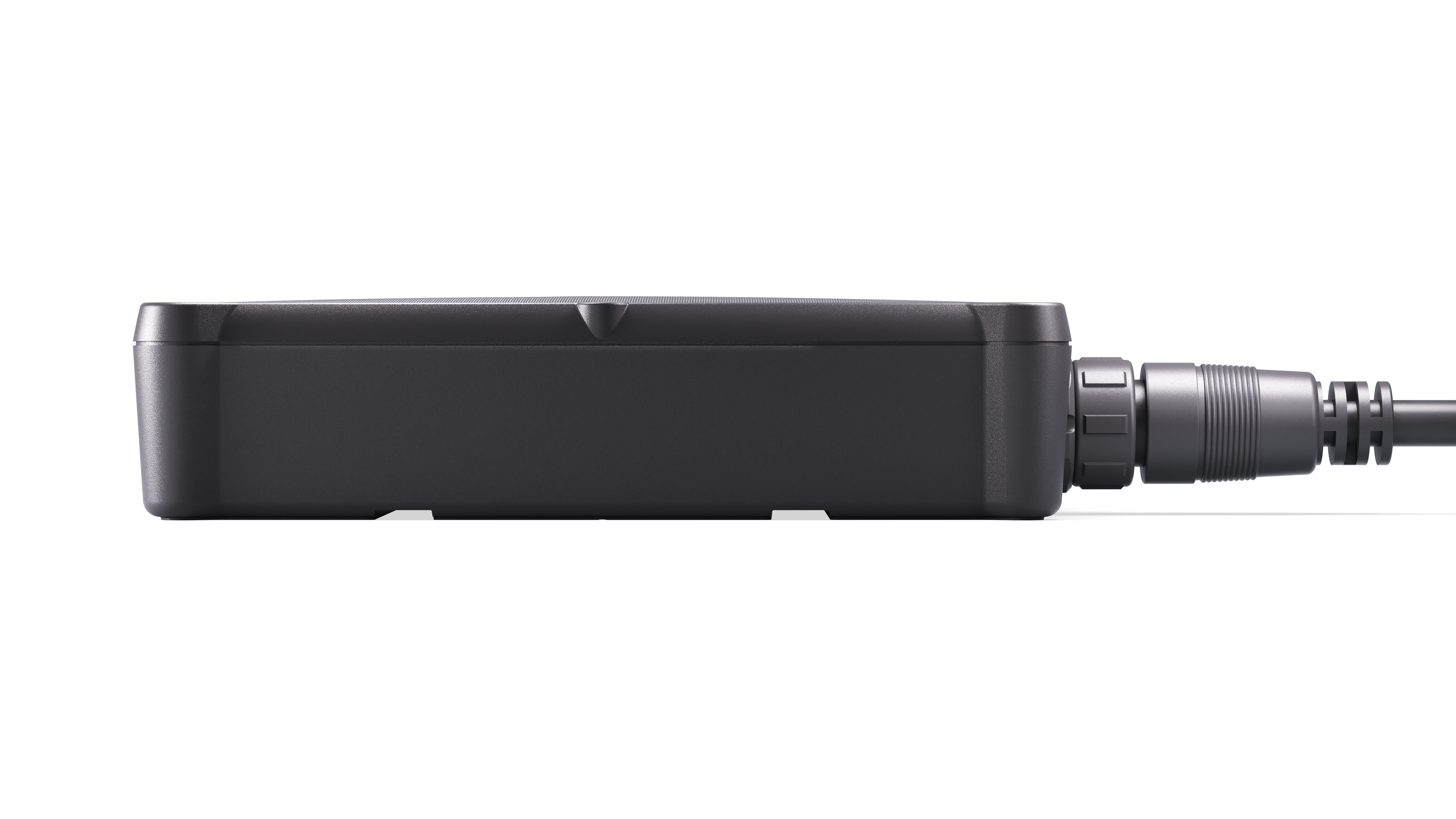

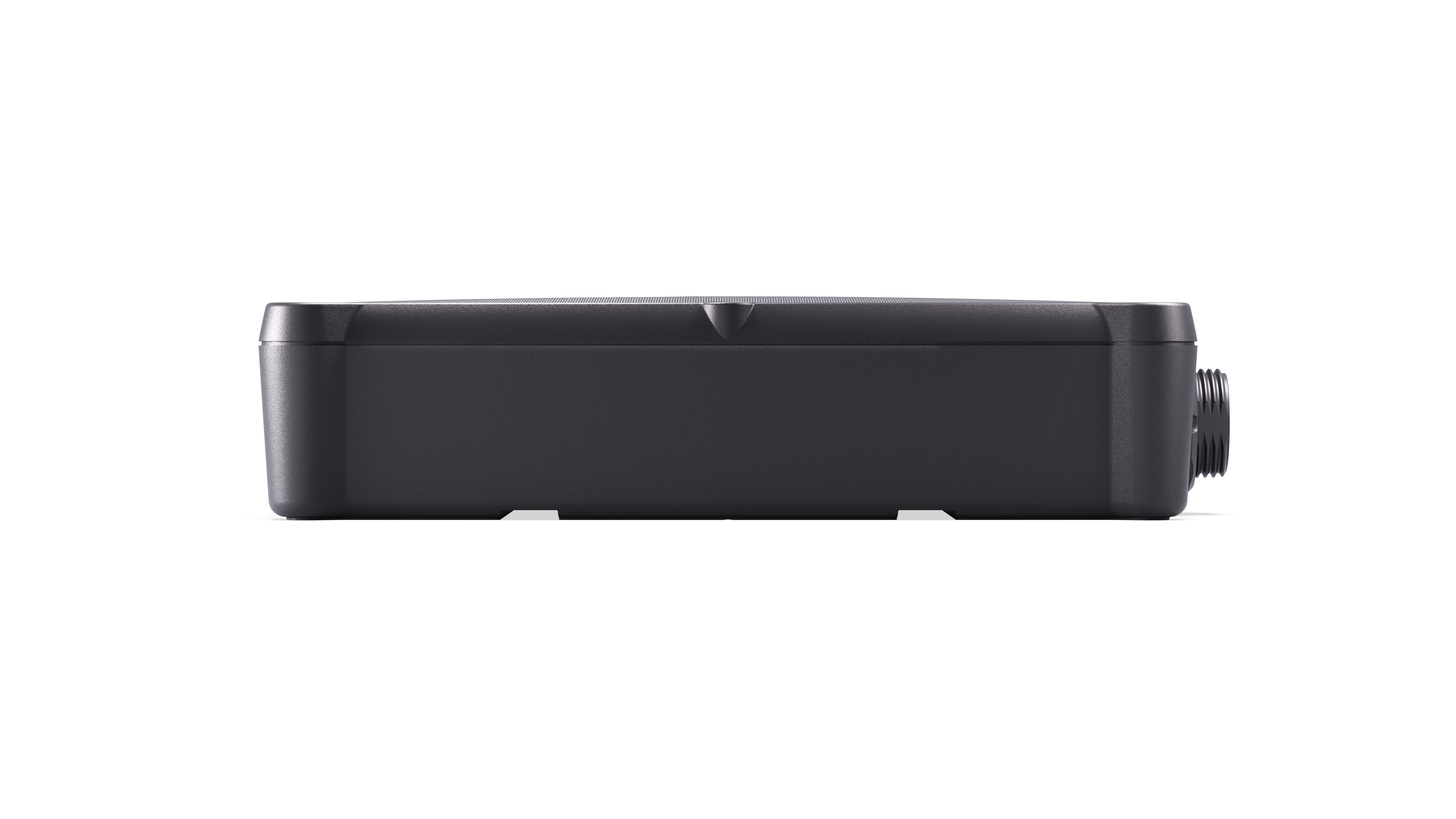

• FORM FACTOR

  • →

    Dimensions
    160mm x 80mm x 38mm
  • →

    Weight
    ~300g
  • →

    Mounting
    Zip tie and screw-mount, vibration-resistant housing with optional adhesive or magnet integration
  • →

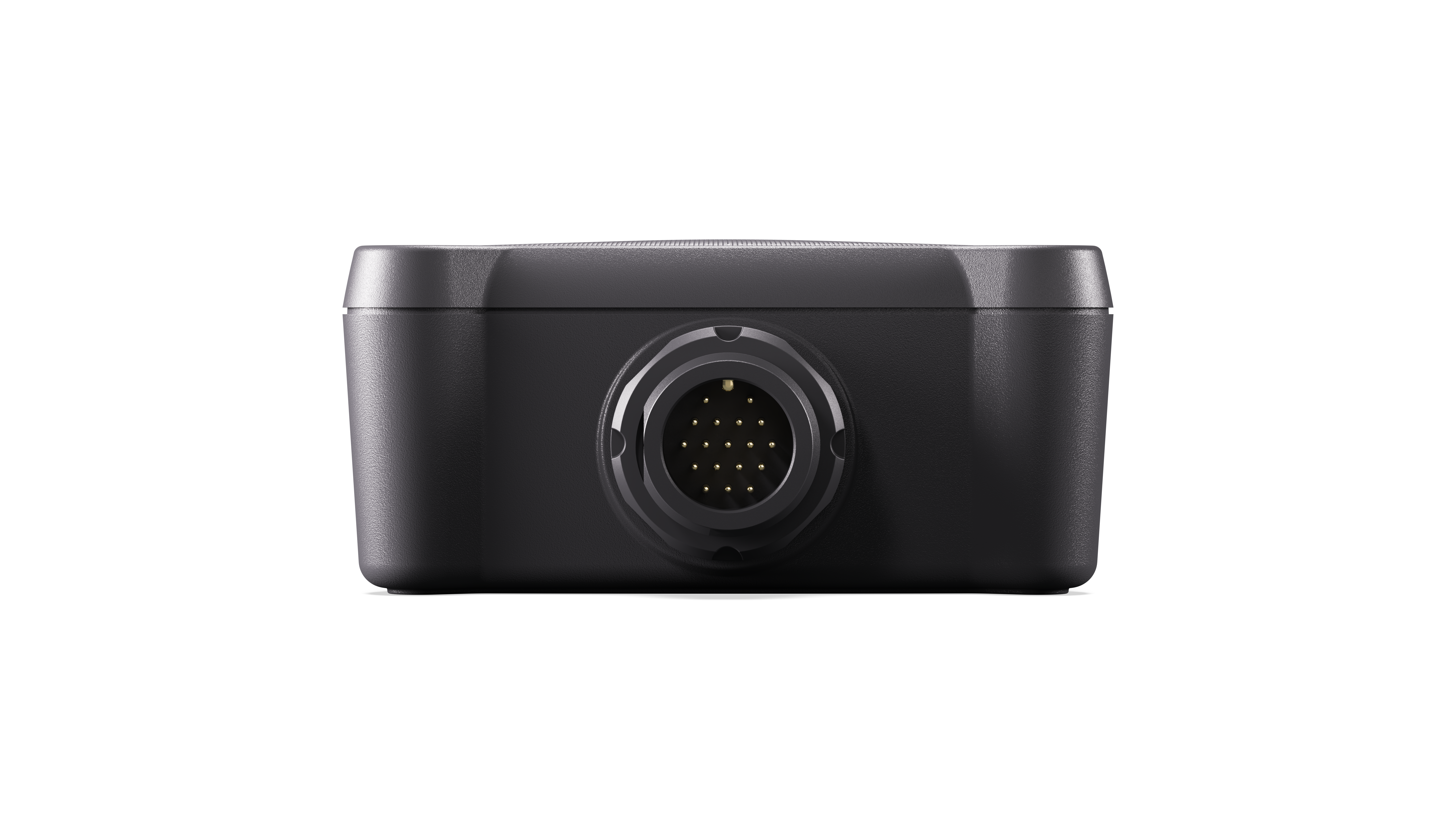

    Connector
    Ruggedized 18-pin automotive-grade
  • →

    *See product reference manual for internal battery specifications
